NV Magnetometry for Microelectronics and Material Sciences

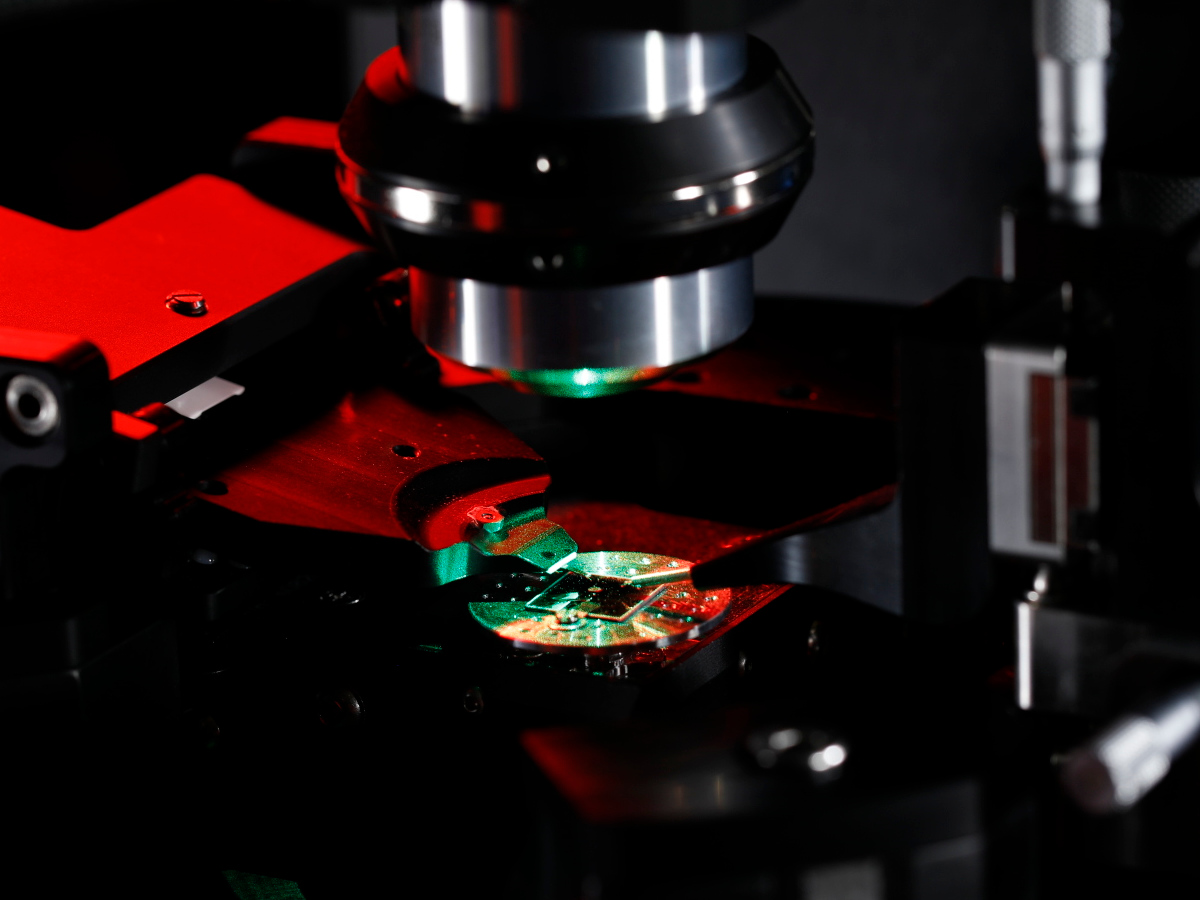

NV-based quantum magnetometry revolutionizes microelectronics and material analysis by enabling non-invasive, room-temperature magnetic imaging with unprecedented sensitivity and resolution. Widefield NV sensors allow rapid inspection of large circuit areas, while scanning NV probes deliver nanoscale detail for defect localization and stress analysis. This technology supports real-time quality assurance for integrated circuits, battery systems, and advanced materials under operational conditions—without cryogenic cooling or bulky shielding. By combining high spatial resolution (down to tens of nanometers) with pT-level sensitivity, NV magnetometry provides actionable insights for process optimization, failure analysis, and predictive maintenance in industrial environments.
NV Magnetometry for Microelectronics and Material Sciences

Key Insights & References

Value proposition

non-invasive, scalable, room-temperature, high-resolution, failure analysis

Bottleneck of SOTA

Classical solutions like SQUID or Hall sensors require cryogenic setups, lack scalability for wafer-level inspection, and cannot achieve nanoscale resolution at ambient conditions.

Year Published

2025

Application Area

General

Quantum Sensing & Imaging

Sensing/Imaging Type

Magnetic Field Sensing

Device Type

NV Centers in Diamonds

Operating Environment

Cryogenic

Performance Metrics

Dynamic Range

Sensitivity

nT/sqrt(Hz) - uT/sqrt(Hz)

Resolution

nm - um
